Design Steps

The given example will be used to demonstrate each step in transform mapping the steps start with a re- evaluation of work done during requirements analysis and then move to the development of program structure.

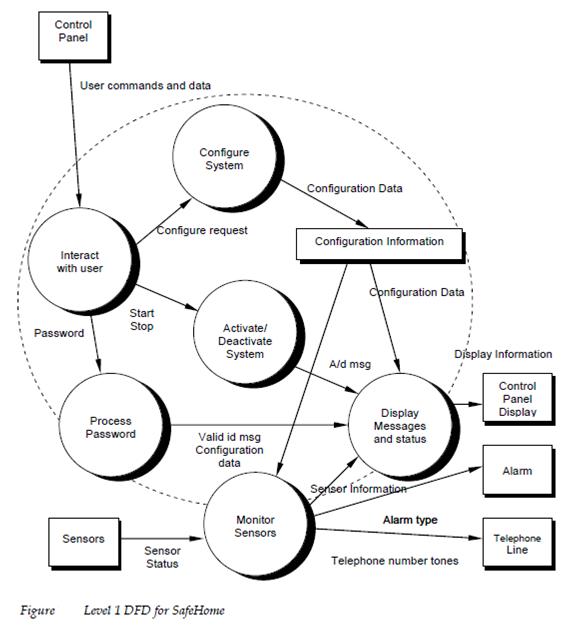

Step 1.  By Review the fundamental system model.  Fundamental system model encompasses the level zero Data Flow Diagram and supporting information.   In reality the design step starts with an evaluation of both the system specification and the software needs specification.  Both documents define structure and information flow at the software interface. In the Figure 20.3, 20.4 depict level zero and level one data flow for the Safe Home software.
