Reciprocating Engine Mechanism:

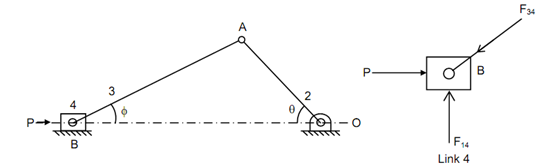

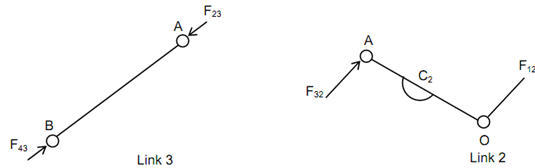

The reciprocating engine mechanism is illustrated in Figure 6(i). The free body diagrams of different links are illustrate in Figures 6(i), (ii), (iii) and (iv). The forces at the piston that means link 4 include the gas force 'P'.

639_Reciprocating Engine Mechanism.png

                (i)                                                       (ii)

1181_Reciprocating Engine Mechanism1.png

   (iii)                                                                               (iv)

  Figure (6)
