Emitter-Stabilized Bias Circuit

                Load Line Analysis

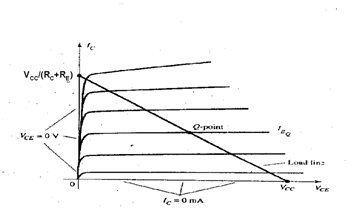

2112_emitter stabilized.png

                                The collector emitter loop equation explaining load line is

                                                                                VCE=VCC-IC(RC+RE)

                                For IC=0mA

                                                                                VCE=VCC

                                And for VCE=0, we have

                                                                                Ic=VCC/(RC+RE
