For F = A.B.C + B.C.D + A‾.B.C ,  write  the  truth  table and simplify using Karnaugh map.

And. Simplification of Logic Function F = A B C + B C‾ D + A‾ B C. Therefore the Truth Table is specified in Table no.1

Inputs



A                B                  C                   D

Output

(F)

0                 0                  0                  0

0

0                 0                  0                  1

0

0                 0                  1                  0

0

0                 0                  1                  1

0

0                 1                  0                  0

0

0                 1                  0                  1

1

0                 1                  1                  0

1

0                 1                  1                  1

1

1                 0                  0                  0

0

1                 0                  0                  1

0

1                 0                  1                  0

0

1                 0                  1                  1

0

1                 1                  0                  0

0

1                 1                  0                  1

1

1                 1                  1                  0

1

1                 1                  1                  1

1

                                                                                          Table no.1

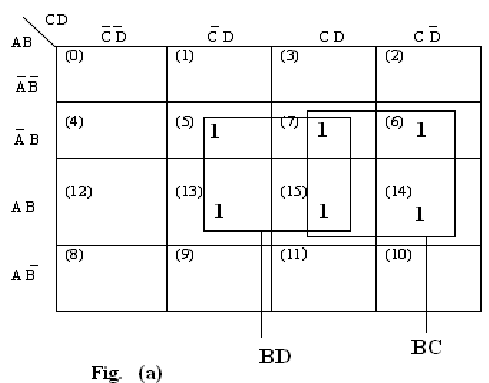

Now the Karnaugh Map is represented in fig.(a).
The simplified expression is F = BC + BD

2453_write  the  truth  table and simplify Karnaugh map.png
