What is a demultiplexer, Computer Engineering

Assignment Help:

What is a Demultiplexer ?

Ans.

Demultiplexer has similar circuit as decoder but here E is obtained as the particular input line, the output lines are similar as decoder (that is max 2n). The information at E will be converted to one of the output line and the output line will be selected through bit combination of n select lines.

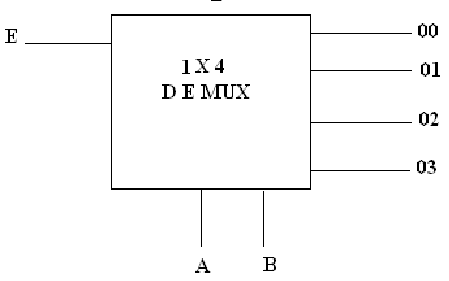

912_Block diagrams of a demultiplexer.png

Block diagrams of a demultiplexer
