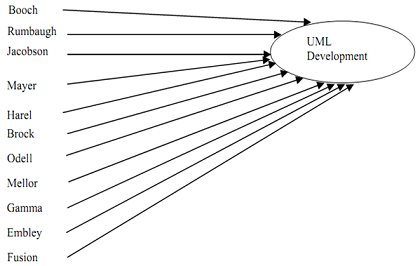

What are the Input for UML development

UML is an attempt to standardize artefacts of analysis and design consisting of semantic models, diagrams and syntactic notations. The first draft (version 0.8) was introduced in month of October 1995. The next two versions, 0.9 in July 1996 and 0.91 in October 1996 were presented after taking input from Jacobson. Version 1.0 was launched in September 1997 and was presented to Object Management Group. In November 1997, UML was adopted as the standard modelling language by OMG. The present version while writing this material is UML 2.0.
