Vented Causeway:

Vented causeways are structures provided with vents (usually pipes) to take care of dry weather perennial flows and which allow water to overflow the paved bed on occasions of high rainfall (Figure).

1380_Vented Causeway.png

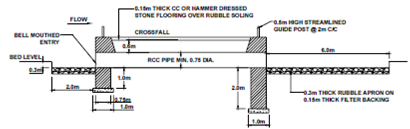

(a)  Alternative 1: With Masonry Head/Cut-off Wall

2106_Vented Causeway1.png

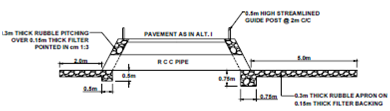

(b) Alternative 2 : With Stone Pitched Bank
