Structure of 8086 cpu, Computer Engineering

Assignment Help:

8086 microprocessor comprises two independent units:

1.  Bus Interface unit

2.  Execution unit

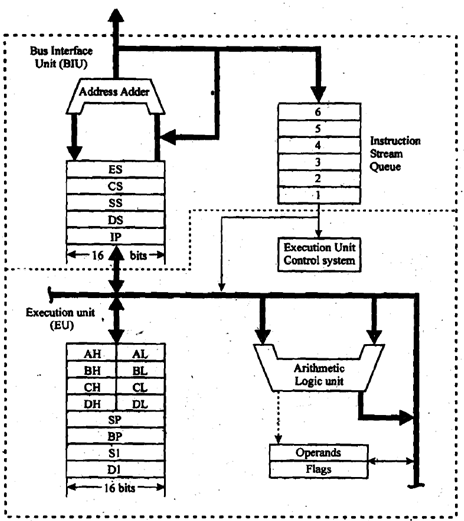

Please refer to Figure below.

2142_STRUCTURE OF 8086 CPU.png

Figure: The CPU of INTEL 8086 Microprocessor

The word independent suggests that these 2 units can function parallel to each other. In other words they can be considered as two phases of instruction pipeline.
