SONET Frame

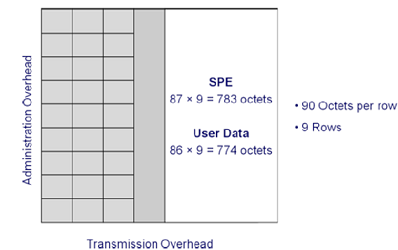

Can be viewed as a matrix of nine rows of 90 octets every for a total of 810 octets.  A few used for control they aren't positioned at the beginning or end of the frame.

First 3 cols - administration overhead.

The rest of the frame is called Synchronous Payload Envelope (SPE)

SPE contains transmission overhead and user data.

Payload can start anywhere in the frame.

A pointer from 1 to 3 of row 4 can determine the beginning address of the SPE.

277_Computer network.png
