State Kirchoff's Current Law

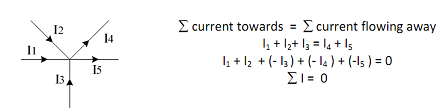

Kirchoff's Current Law (KCL) describes at any junction in an electric circuit the total current flowing towards that junction is equivalent to the total current flowing away from the junction, i.e. Σ I = 0 Therefore , referring to figure :
