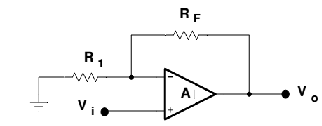

Determine voltage gain for the circuit shown in figure below, with RF = 100K ? and R1=10 K?
Ans.
Determination of voltage gain:
The provided operational amplifier is a non-inverting amplifier. By virtual ground, voltage at inverting terminal of Op-amp is also VI. Writing KCL at this terminal yields
From given data RF= 100 K? and R1=10 K?
