Spanning tree protocol - ccna, Computer Networking

Assignment Help:




Perform Basic Switch Configurations

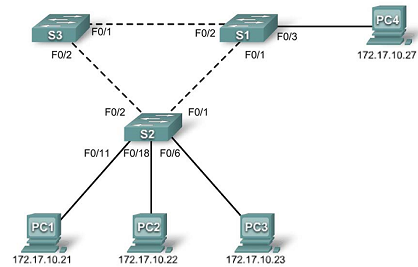

Step 1: Cable a network that is similar to the one in the topology diagram.

You can use any current switch in your lab as long as it has the needed interfaces shown in the topology diagram. The output shown in this lab is based on Cisco 2960 switches. Other switch models might be produce dissimilar output.

Set up console connections to all three switches.
