Simplify the logical expression, Mathematics

Assignment Help:

Simplify the logical expression X‾ Y‾ + X‾ Z + Y Z +Y‾ Z W‾

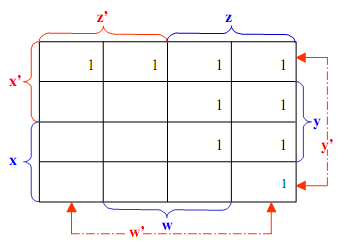

 Ans: The K-Map for the following Boolean expression is described by the following diagram. The optimized expression after that obtained is given below.

x'y' + zw' +  yz

516_Simplify the logical expression.png
