Servo accelerometer

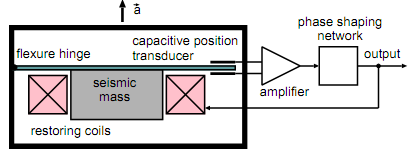

Electro-mechanical servo (force balance) accelerometer uses an electromagnet to provide restoring force. The position of the seismic mass is measured by a position transducer. A closed loop amplifier with a phase shaping network controls the electromagnet. The servo accelerometer has important advantages over the purely mechanical system.

2115_Servo accelerometer.png
