Schematic diagram of a system in which the d/a converter, Electrical Engineering

Assignment Help:

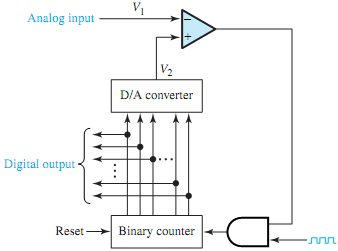

Q. Develop a schematic diagram of a system in which the D/A converter of Figure can be employed in a digital voltmeter.

2423_schematic diagram of a system in which the D-A converter.png
