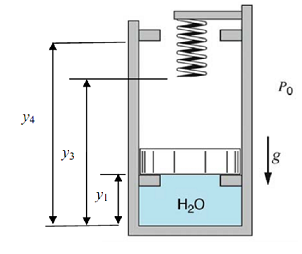

Consider the frictionless piston-cylinder set-up with a linear spring as is shown below. The cylinder has an internal cross-sectional area of AC = 0.1 m2. Distances y1 and y4 are 0.005 m and 0.6 m respectively. The mass of the piston is mp = 80 kg and the environmental pressure is P0 = 100 kPa. Assume g = 10 m/s2. Initially the set-up contains saturated liquid water at T1 = 30ºC. 950 kJ of heat (1Q5) is now added until the piston is finally forced onto the upper stops. In total, 60 kJ/kg of specific work (1w5) was done. The following states are of interest: State 1: Initial state as is shown State 2: Piston leaves the bottom stops State 3: Piston gets into contact with the spring State 4: Piston gets into contact with the upper stops, Pressure is 1 MPa. State 5: Final state. Calculate the following: a) P1 b) P2 c) y3 d) T5.
Calculate the greatest stress - plate: A rectangular plate 10 mm thick within a hole of 50 mm diameter drilled on this is as shown in Figure 10. This is subjected to axial pul
Used Engine Oil: Used engine oil may cause skin disease if repeatedly in contact with the skin for prolonged time. It is advisable to thoroughly wash the hands with soap and water
Find the maximum torque - I-section: An I-section 150 × 80 mm has flanges 6 mm thick and web 4 mm thick. Discover the maximum torque that may be safely applied if the shear st
Q. Flange Assembly with Bolt Tensioning? Measure the free length of the bolts ultrasonically. This must be done prior to applying any load to the bolt. Install bolts on the
AskThe spring controlled governor of the Hartung type has two rotating masses each of 2.5 kg and the limits of their radius of rotation are 100 mm and 125 mm. The each mass is dire
Deflection at the centre: A simply supported beam of span 6 m is subjected to Udl of 24 kN/m for a length of 2 m from left support. Discover the deflection at the centre, maxi
Differentiate between hot working and cold working process
working with complete P.P.E
Draw complete shear and moment diagrams for a 3 m long cantilever beam having a uniform distributed load of 2 kN/m along its length.
Technical Limitations of Extension of screw conveyor Technical Limitations: Breakdown of hinged joint at intermediate condition of link. ?Not proper extension of coaxi
