Not-logical instruction-microprocessor, Assembly Language

Assignment Help:

NOT : Logical Invert: The NOT instruction complements (inverts) the contents of an a memory location or operand register bit by bit. The instance are as following:

Example :

NOT     AX
NOT     [5000H]

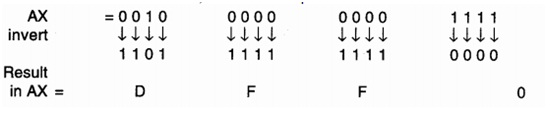

If the content of AX is 200FH, the first instance instruction will be executed as shown.

379_NOT 1.jpg

The result DFFOH will be in the destination register AX.
