Module of the rated currents - transformer:

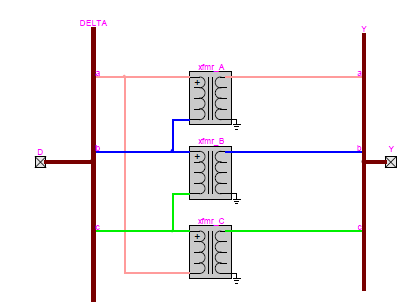

The transformer of the Face(Figure) 2 is a transformer of type Delta-Y (the neutral of Y is grounded). The rated output is of 1500 kVA, the rated voltages are 12.5 kV in the primary and 480 V in the secondary and the equivalent reactance of direct sequence of the transformer is 5 %.
1-What is the module of the rated currents associated with the rolling-ups in the primary?
2-What is the number format which corresponds to this connection of the transformer according to the principle of the clock?
3-What is the rate of the rolling-ups between the primary and secondary?
Q. Draw and explain the circuit of Wein bridge oscillator. Obtain the expressions for the (i) frequency of oscillation and (ii) condition for oscillation. Will oscillat
Vital parameters of regulator quality: 1. The output voltage's temperature coefficient of is the change in output voltage with temperature (perhaps averaged over a certain tem
Q. Enumerate different types of errors in measurement. How can these errors be minimized. Sol. Types of errors: Errors may arise from different sources and
Explain chemical vapour deposition method for the preparation of nanomaterial and its properties
Techniques and resources Different techniques and resources were used in different areas of the problem during the course of the project. The most important of them was th
A switch-mode power supply is to be designed with the following specifications: input voltage V s = 48 V ± 10%, output voltage V o = 5 V, switching frequency f s = 100 kHz, outp
how do I find the ic and ve
Q. What is DTMF dialling? DTMF dialling 1. Uses push buttons 2. Uses 8 different frequencies in pairs. 3. 16 different characters can be represented. 4. The f
Q. An interface circuit consisting of R 1 and R 2 is designed between the source and the load, as illustrated in Figure such that the load sees a Thevenin resistance of 50 betw
Illustrate the working of full wave rectifier using bridge rectifier. How is it different from centre tapped Rectifier ? Illustrate Avalanche and Zener breakdown. Draw & explain
