Minimization of the logic function using k-maps, Computer Engineering

Assignment Help:

Minimize the logic function F(A, B, C, D) = ∑ m(1,3,5,8,9,11,15) + d(2,13) using K-maps

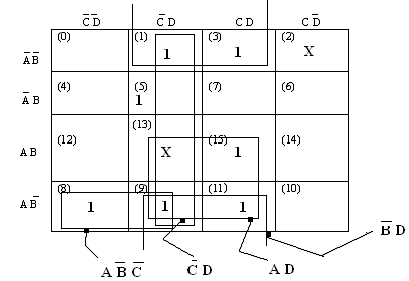

Ans. The logic function minimization of F(A, B, C, D) = ∑ m(1,3,5,8,9,11.15) + d(2,13) by using K-maps is shwon in table.

1548_Minimize the logic function using K-maps.png

In SOP form the minimized logic expression is F = A B‾ C‾ + C‾D + B‾D + AD
In POS form the minimized logic expression is F = (A + B‾ + C‾ ) ( C‾ +D) ( B‾ +D) (A+D).
