Measurement of thermocouple voltage

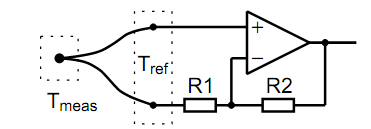

The voltage is typically only a few millivolts and should be measured using a high impedance system. If an amplifier is used, must also have a low offset voltage and thermal drift. An example circuit is as follows:

98_Measurement of thermocouple voltage.png
