MAGNETIC CORE MEMORY:

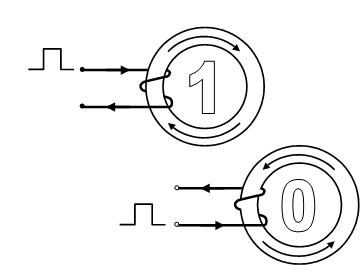

This type of memory is used extensively in airborne digital systems, although integrated circuits are being developed with most modern aircraft systems.  This system works by a Ferro-magnetic material will become magnetized if placed in the proximity to an electric current.  Each bit in the magnetic core memory is a ferrite ring in which a magnetic field can be induced by a current flowing in a wire.  Figure 9 shows typical ferrite ring for storing a single bit.



464_megnatic core memory.png



Ferrite Ring Memory

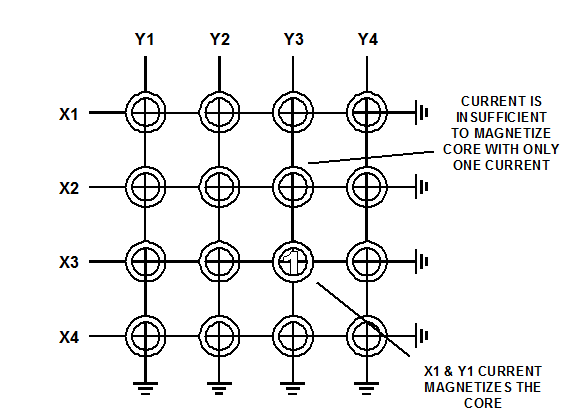

Although the wire carrying the current is wound round the ring, the same effect is obtained if the wire passes through the ring.  This is a more convenient way to set the magnetic state of each ring when a plane of cores is built.  The advantage of this type of memory is that when the power is removed it holds its state, i.e. it is a non-volatile memory.  A matrix of cores containing 16 bits of information is shown in Figure.

695_megnatic core memory1.png

16 Bit Ferrite Memory
