Isentropic flow through the nozzle:

In an isentropic flow through the nozzle, air flows at rate of 600Kg/hr. At inlet to the nozzle, the pressure is 2Mpa and temperature is 1270C. The exit pressure is 0.5Mpa. If the initial air velocity is 300m/sec. Determine the following

(i)   Exit velocity of air, and

(ii)  Inlet and exit area of nozzle.

Sol:

711_Isentropic flow through the nozzle.png

Rate of flow of air mf = 600Kg/hr

Pressure at inlet P1  = 2MPa

Temperature at inlet T1  = 127 + 273 = 400K

Pressure at exit P2  = 0.5MPa

Velocity at inlet V1  = 300m/sec

Let the velocity at exit = V2

And inlet and exit areas be A1  and A2

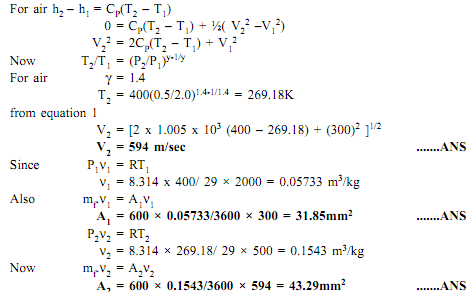

Applying SFEE between the section 1 - 1 & section 2 - 2

1708_Isentropic flow through the nozzle3.png

2390_Isentropic flow through the nozzle1.png
