How is 8255 (Programmable Peripheral Interface) configured if its control register contains 9B h.

Ans.

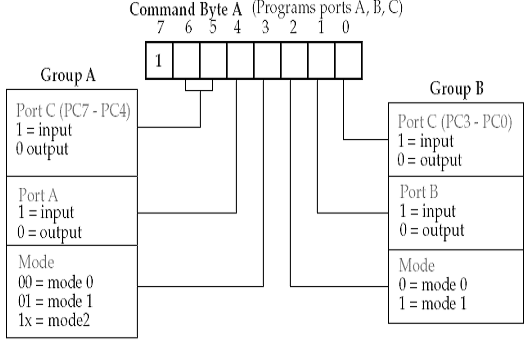

1669_Programmable Peripheral Interface.png

Programmable Peripheral Interface

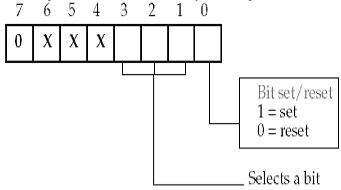

Command Byte B (sets or resets any bits in port C)

1196_control register.png

BH => 1001 1011 =>

6b5=00-> Mode0

4=0-> Port A as input

3=1-> Port C as input (PC7-PC4)

2=0-> Mode 0

1=1-> Port B as input

0=1-> Port C as input (PC3-PC0).
