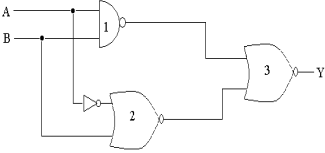

Find the boolean expression for the logic circuit shown below.
Ans. Output of Gate-1 (NAND) = (AB)'
Output of Gate-2 (NOR) = (A'+B)'Output of Gate-3 (NOR) = [(AB)' + (A'+B)']'
Here applying the De-Morgans law, (X+Y)' = X'Y'and (XY)' = (X'+Y') [(AB)' + (A'+B)']' = [(AB)']' [(A'+B)']'= (AB) (A'+B)= AA'B + ABB= ABB= AB.
