Find out the shear force in kn rounded to 1 dp, Physics

Assignment Help:

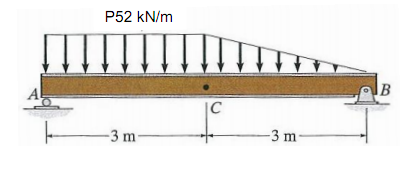

Determine the Shear Force in kN rounded to 1 DP and Bending Moment in kN.m rounded to 1 DP at point C in the beam when the UDL for AC on the beam is P52 kN/m and the maximum value of the Varying Distributed Load (VDL) is P52 kN

The Shear Force in kN at C rounded to 1DP is

ANS

The Bending Moment in kN.m at C rounded to 1DP is

ANS

2192_Find out the Shear Force in kN rounded to 1 DP.png
