Explain the Working of Asynchronous (Ripple) Counters?

An external clock is connected to the clock input of the first flip-flop (FF0) only. Thus FF0 changes state at the falling edge of each clock pulse but FF1 changes only when triggered by the falling edge of the Q output of FF0. For the reason that of the inherent propagation delay through a flip-flop the transition of the input clock pulse and a transition of the Q output of FF0 can never occur at exactly the same time. Consequently, the flip-flops cannot be triggered simultaneously producing an asynchronous operation.

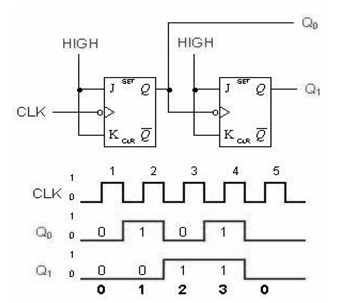

A two-bit asynchronous counter

1544_Asynchronous (Ripple) Counters.png

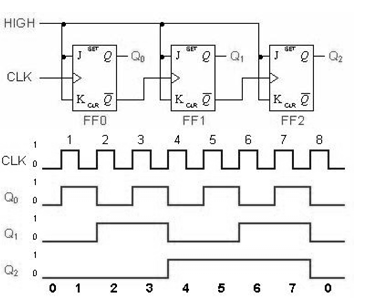

Three-bit asynchronous binary counter

1705_Asynchronous (Ripple) Counters 2.png

The clock pulse fed in to FF0 is rippled by the other counters after propagation delays, like a ripple on water, hence the name Ripple Counter.
The 2-bit ripple counter circuit on top has four different states, every one corresponding to a count value. Likewise, the counter with n flip-flops can have 2 to the power n states. The number of states in a counter is recognized as its mod (modulo) number Therefore a 2-bit counter is a mod-4 counter.

A mod-n counter may as well describe as a divide-by-n counter. This is for the reason that the most significant flip-flop (the furthest flip-flop from the original clock pulse) produces one pulse for every n pulses at the clock input of the least significant flip-flop (the one triggers by the clock pulse).
