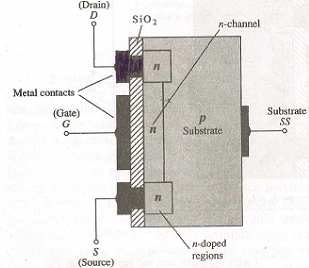

Q. With a cross sectional view, explain the working of a depletion type MOSFET Draw a biasing amplifier circuit
DEPLETION-TYPE MOSFET: Two types of FETs: JFETs and MOSFETs. MOSFETs are further broken down into depletion type and enhancement typeThe terms depletion and enhancement define their basic mode of operation, while the label MOSFET stands for metal- oxide-semiconductor-field-effect transistor. Since there are differences in the characteristics and operation of each type of MOSFET. The depletion-type MQSFET, which happens to have characteristics similar to those of a JFET between cutoff and saturation at IDSS but then has the added feature of characteristics that extend into the region of opposite polarity for V GS'
