Explain the operation of octal to binary encoder.

Ans

Octal to binary encoder consists of eight inputs, one for each of eight digits and three outputs which generate the consequent binary number. For example: low order output bit Z is if the input octal digit is odd.

There is DO input is not linked to any O R gate; the binary output must be all zeroes in such case and all 0's output is also acquired, while all inputs are zeroes. This discrepancy can be resolved through giving one more output to specify the fact as all inputs are not zeroes.

Truth table

Inputs

Outputs

D0

D1

D2

D3

D4

D5

D6

D7

x

y

z

1

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

1

0

0

1

0

0

0

0

0

0

1

0

0

0

0

1

0

0

0

0

0

1

1

0

0

0

0

1

0

0

0

1

0

0

0

0

0

0

0

1

0

0

1

0

1

0

0

0

0

0

0

1

0

1

1

0

0

0

0

0

0

0

0

1

1

1

1

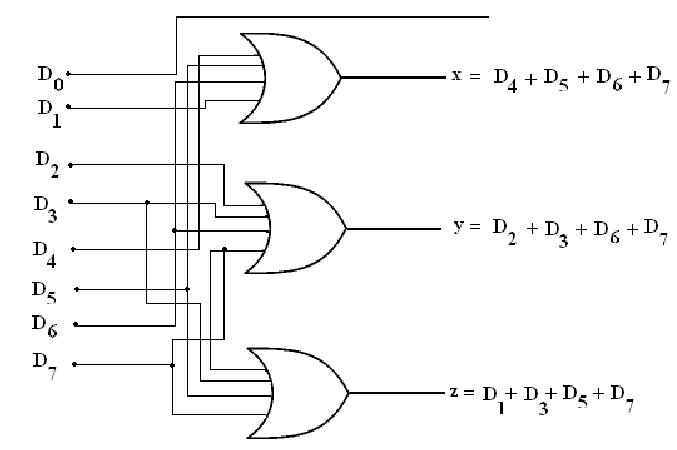

1228_Logic diagram of octal to binary encoder.png

Logic diagram of octal to binary encoder
