Explain Sequential logic circuit

Ans.

Sequential logic circuit:-

(i) Output not only depends upon the recent state of the input but also depend upon the earlier state of the output.

(ii) Memory component is present or a feedback connection is there.

2090_sequential circuit.png

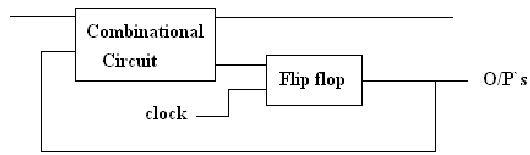

Block diagram of Sequential logic circuit
