Q. Explain Block diagram of the system?
The block diagram is a pictorial representation of the equations of the system. Each block represents a mathematical operation, and the blocks are interconnected to satisfy the governing equations of the system. The block diagram thus provides a chart of the procedure to be followed in combining the simultaneous equations, from which useful information can often be obtained without finding a complete analytical solution. The block-diagram technique has been highly developed in connection with studies of feedback control systems, often leading to programming a problem for solution on an analog computer.

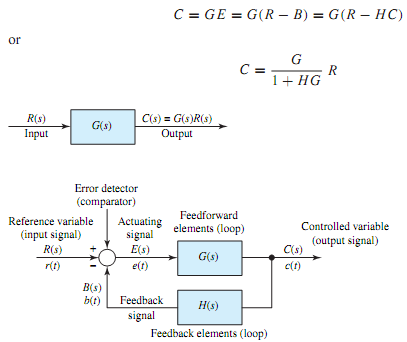

The simple configuration shown in Figure is actually the basic building block of a complex block diagram. The arrows on the diagram imply that the block diagram has a unilateral property; in other words, a signal can pass only in the direction of the arrows. A box is the symbol for multiplication; the input quantity is multiplied by the function in the box to obtain the output. With circles indicating summing points (in an algebraic sense), and with boxes or blocks denotingmultiplication, any linearmathematical expression can be represented by block-diagram notation, as in Figure for an elementary feedback control system. The expression for the output quantity with negative feedback is given by
The transfer function M of the closed-loop system is then given by
The block diagrams of complex feedback control systems usually contain several feedback loops, which might have to be simplified in order to evaluate an overall transfer function for the system.
Electric circuits or networks are formed by interconnecting various devices, sources, and components. Although the effects of each element (such as heating effects, electric-?eld e
Two pure sine waves have similar amplitude "A" and frequency "f." They are out of phase through 180 degrees. If these two signals are added, the resulting waveform will be:
A voltage amplifier without feedback has a nominal gain of 500. The gain, however, varies in the range of 475 to 525 due to parameter variations. In order to reduce the per-unit ch
Q.9 What are the main differences between VGA and CGA graphics adapters? Ans: Colour Graphics Adapter (CGA), initially also known as Colour/Graphics Adapter or IBM Colo
Give some applications of manganin. Manganin is alloy of nickel, copper and manganese. This is used shunts in measuring instruments, for making their coils and for making pr
algorithm for Reversing the digits of an integer
Q. Write short notes on the Stability Factor of Biasing circuits. The degree of success achieved in stabilizing Ic in the face of variations in Ico is expressed in terms of sta
Question 1: a) Describe how pipelining can improves the efficiency of the fetch-execute cycle. b) Explain the term superscalar architecture. c) Explain the term prin
Q. Draw the basic structure of an SCR and the common circuit symbol ? The SILICON CONTROLLED RECTIFIER, usually referred to as an SCR, is one of the families of semiconductors
what is the relationship between the inductance, capacitance and resistance in the 2-wattmeter experiment?
