Q. Explain about Warren Truss?

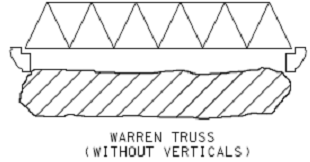

A truss is a simple structure whose members are subject to axial compression and tension only and however not bending moment. The most common truss types are Warren truss, Pratt truss and Howe truss. Warren truss comprises a series of isosceles triangles or equilateral triangles. To increase the span length of truss bridge, verticals are added for Warren Truss.

844_Explain about warren truss.png
