Explain about the typical embedded system hardware unit.

Typical Embedded System Hardware Unit:

Program Flow and data path Control Unit (CU): comprises a fetch unit for fetching instructions through the memory

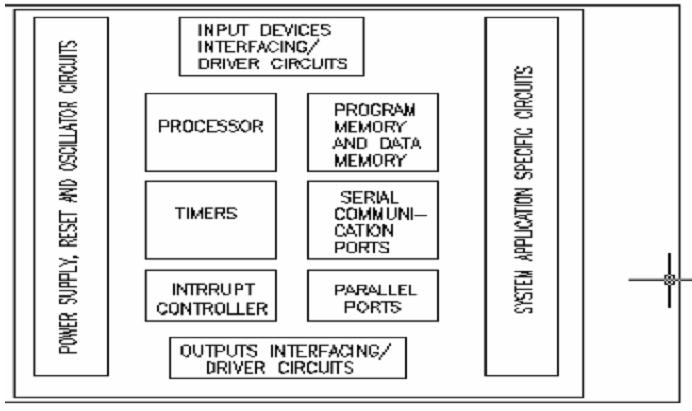

1105_Typical Embedded System Hardware Unit.png

Typical Embedded System Hardware Unit

Execution Unit (EU): comprises circuits for arithmetic and logical unit (ALU), and for giving instructions for a program control task, as like data transfer instructions, interrupt, halt or jump to other set of instructions or call to other reset or sleep or routine.
