Example of image processing:

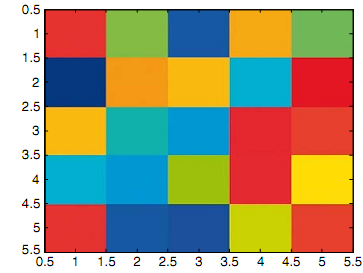

The other illustration generates a 5 × 5 matrix of arbitrary integers in the range from 1 to the number of colors; the resultant image is as shown in figure.

1200_Example of image processing.png

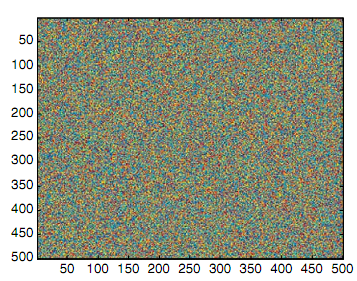

Obviously, such images are instead crude; the elements presenting the pixel colors are quite large blocks. A larger matrix would result in something more closely similar to an image, as shown in figure:

1682_Example of image processing1.png

1670_Example of image processing2.png
