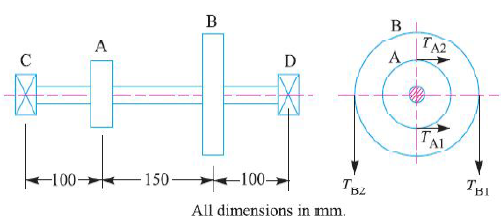

The shaft, as given in Figure is driven by pulley B from an electric motor. Another belt drive from pulley A is operating a compressor. The belt tensions for pulley A are 1500 N and 600 N. The ratio of belt tensions for pulley B is 3.5. The diameter d of pulley A is 150 mm and the diameter d of pulley B is 480 mm. The maximum allowable tensile stress for the shaft material is 170 MPa and the allowable shear stress is 85 MPa. Taking bending and torsion factors as 1.25 and 1.75 respectively, Evaluate the shaft diameter. Also search out the dimensions for a hollow shaft with outside diameter limited to 30 mm. Compare the weights of the two shafts.
Determine the deflection under the loads: Determine the deflection under the loads as shown in Figure Solution ∑ F y = 0, so that R A + R B = 80 + 20 = 100 k
clamping calulations
A circular thin steel diaphragm having an effective diameter of 20mm is clamped around its periphery and is subjected to a uniform gas pressure of 180kN/m^2. Calculate the minim
What is the concept of continuum? How will you define density and pressure using this concepts
determine crippling load for T section dims 12cm??12cm??2m and of length 6m it used as colum with one of its end fixed and other hinged E=2??10 power 5 N/mm2
analytical method for determining the acceleration and velocity?
Resistor: The wire that opposes (resists) the flow of current through it by virtue of its property is called resistor. This property is known as resistance. The resistance is
Determine least value of work: Q . Determine least value of W as shown in the figure given below to keep the system of connected bodies in equilibrium µ for surface of c
Define the term Miller Indices. Miller Indices are a process of explaining the orientation of a plane or set of planes into a lattice within relation to the unit cell. They wer
Consider the U-shaped curved beam shown below (with rectangular cross-section and thickness h ), which is loaded by force P as indicated. A free-body diagram reveals that a mome
