Question:

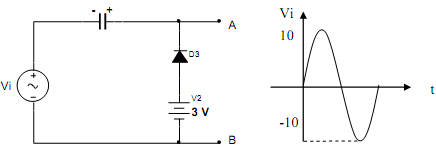

a). For the circuit shown in figure state which operation is performed and draw the output waveform if measured between points A and B. The input signal is given in figure and the diode is a Silicon diode.

951_Evaluate the quiescent point of the circuit.png

b). Evaluate the quiescent point of the circuit given in figure if IDSS = 8 mA and Vp = -6 V.

1010_Evaluate the quiescent point of the circuit1.png
