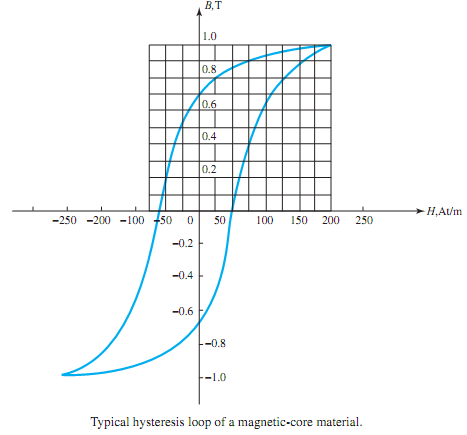

(a) Estimate the hysteresis loss at 60 Hz for a toroidal (doughnut-shaped) core of 300-mm mean diameter and a square cross section of 50mmby 50mm. The symmetrical hysteresis loop for the electric sheet steel (of which the torus is made) is given in Figure.
(b) Now suppose that all the linear dimensions of the core are doubled. How will the hysteresis loss differ?
(c) Next, suppose that the torus (which was originally laminated for reducing the eddy- current losses) is redesigned so that it has half the original lamination thickness. Assume the stacking factor to be unity in both cases. What would be the effect of such a change in design on the hysteresis loss?
(d) Suppose that the toroidal core of part (a) is to be used on 50-Hz supply. Estimate the change in hysteresis loss if no other conditions of operation are changed.
A balanced three phase, four wire, WYE connect load consisting of per phase resistenance of A ohms and inductive reactance of D ohms/phase is connected to a B000 V three phase sour
Q. Find the output function Y for the logic circuits of Figure (a) and (b). An AOI (AND-OR-INVERT) gate is shown in Figure with its two possible realizations. Obtain the output
Q. What is a clamper? Differentiate between a clamper and clipper. Clamping network shifts (clamps) a signal to a different dc level, i.e. it introduces a dc level to an ac sig
how many points are required to make an parabola in offset method when vertical point has 4 points
Configured dual processor architecture In centralized SPC, dual processor architecture can be configured to operate in following one of three modes: 1. Standby mode: In
An abrupt silicon (n i = 10 10 cm -3 ) p-n junction consists of a p-type region containing 10 16 cm -3 acceptors and an n-type region containing 5 x 10 16 cm -3 donors. a)
Q. For a pyramidal-horn antenna, the maximum directive gain is given by occurring when the aperture dimensions are A ∼ = √3λLandB = 0.81A. The principal-plane beam- widths
A 100-kW, 250-V shunt generator has an armature-circuit resistance of 0.05 and a field- circuit resistance of 60 . With the generator operating at rated voltage, determine the i
The material with lowest resistivity is (A) Constantan. (B) Silver. (C) manganin. (D) nichrome. Ans: The material with lowest resist
Q. A bandpass filter circuit is shown in Figure. Develop a PSpice program and use PROBE to obtain a Bode magnitude plot for the transfer function ¯H(f) = ¯Vout/ ¯Vin for frequency
