Er model, Database Management System

Assignment Help:

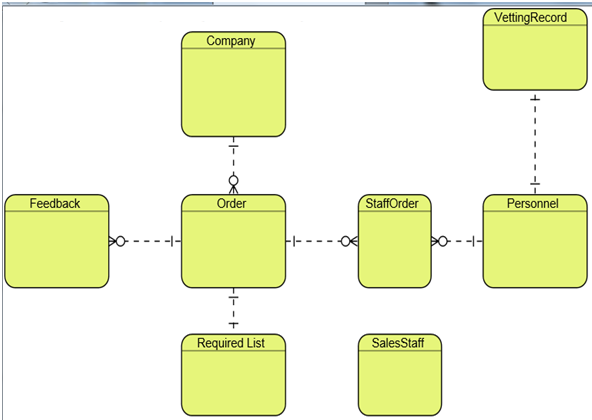

There are a number of possible solutions to the open ended brief. One of the simple ones is shown here without the PKs and FKs.

It is important to think of how a number of tasks could be automated and delivered through the use of triggers and procedures which alleviates the need to create entities and store information.

You are advised to iterate your own solution and use this skeleton solution with modifications to both validate and verify your own model.

1728_ER Model.png
