Energy stored in a magnetic field

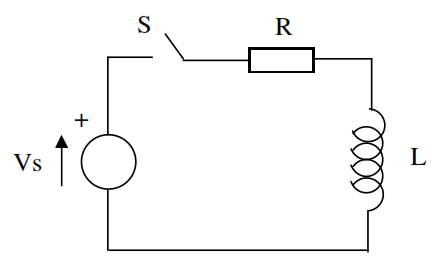

Consider a circuit consisting of a voltage supply,  switch,  resistor  and  a  coil  of  N turns wound on a toroid of length l, all in series.



208_Energy stored in magnetic field.png

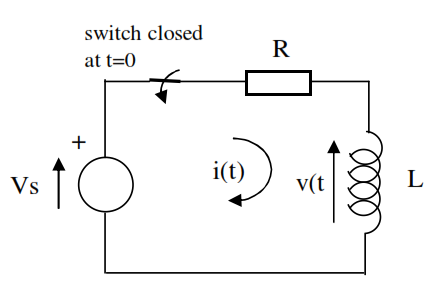

With the switch open, no current flows inthe coil and therefore there is no flux produced in the core of the coil.



1326_Energy stored in magnetic field 1.png

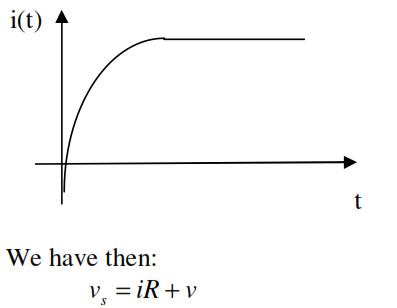

At t=0, the switch is closed and the current builds up with time. It is not instantaneous,because the coil produces a back emf that limits the rate of rise of current





2133_Energy stored in magnetic field 3.png



where v = the time dependent back emf created by the coil. The instantaneous power being delivered
by the supply at time t is

vs .i=i2 R+v.i

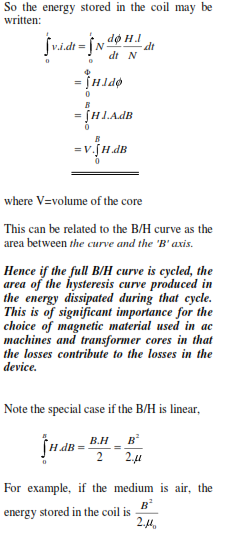

986_Energy stored in magnetic field 4.png

237_Energy stored in magnetic field 5.png
