You have been requested by your Senior Engineer to design a lift control unit (LCU) and prepare a report detailing your proposed solution. The client requires a microcontroller based control unit to automate the operation of a passenger lift that services a three story building. The existing equipment including the winch, lift, cabling, doors and electrical switch gear has recently been refurbished, but the old electromechanical lift controller unit is to be replaced. The new LCU is also required to provide a display showing the location of the lift as a floor number.

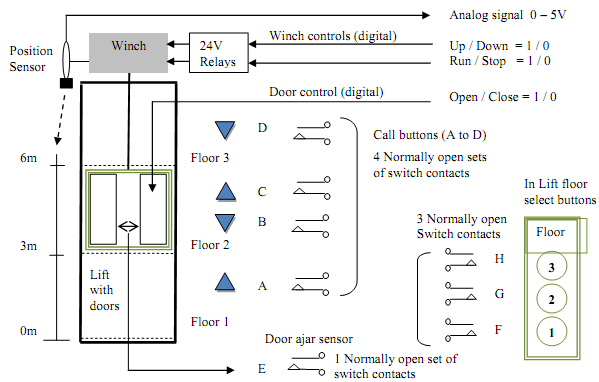

The existing lift equipment includes the lift itself, the doors, the winch, a position sensor, a door ajar sensor, 4 call buttons on three floors and 3 in-lift floor select buttons. The detail for the electrical interface to equipment is shown in Figure 1, and explained below:
Ask question #Minimum 10] In the system shown in Figure 4-1, the rated voltage of the line is 110kv, and the conductors are all LGJ-120 type. The parameters are: r1=0.21O/km,x1=0
A balanced star-connected load is connected across a three phase 450V 50 Hz AC supply. Each load element has an impedance of 5+j12 Ω. Calculate: (i) The power factor of the
A linear circuit component is one that has a linear I V characteristic
Q A60-Hz, 100-kVA, 2400/240-V(rms) transformer is used as a step-down transformer from a transmission line to a distribution system. Consider the transformer to be ideal. (a) Fi
In the circuit above, V1 is a dc supply which outputs 12V, R1 has a value of 100 Ω and C1 is 100µF. The switch has been left in the position shown for a long time such that there i
Q. (a) Consider the capacitor - input filter circuit of Figure and obtain the z-parameters for the circuit. (b) Determine the transfer function V 2 /V 1 when I 2 is zero.
Question: a) For the circuit shown in figure (i) Determine the voltages across R1 and R2 and (ii) Determine the current which flows across R1 and R2. Both D1 and D2 a
a. Simulate a diode application circuit using Multisim EWB. Compare calculated and simulated results Each student must choose one of the following circuits from question 1 (Ref
Q. What layers are covered under end to end layer connectivity? Layers 4-7 of ISO-OSI reference model communicate with peer entities in end systems. In intermediate systems,th
Question 1: (a) Outline the architecture of MIT's iLabs. Design a diagram supporting your explanation. (b) Give advantages/disadvantages of the MIT Microelectronics iLabs wi
