Q. Elucidate the nature of signals produced on subscriber's loop by a pulse dialer and a touch tone dialer.
Ans:
DTMF is a simple two-of -eight encoding scheme where every digit is represented by linear addition of two frequencies. DTMF is severely for signaling between a subscriber's location and the nearest message switching center ortelephone office. DTMF is several times confused with another two-tone signaling system known as multi frequency signaling (Mf) that is a two-of-six code designed to be used only to convey information between two electronic switching machines.

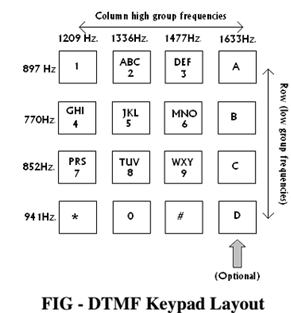

Figure demonstrates four-row-by-four column keypad matrix used with a DTMF keypad. As the figure displays, keypad is consists 16 keys and eight frequencies. Most household telephones, though, aren't equipped with the special-purpose keys located in the fourth column (that is, A,B, C and D keys). Hence, most household telephones actually use two-of-seven tone encoding scheme. Four vertical frequencies (known as low group frequencies) are 697 Hz, 852 Hz and 941 Hz and four horizontal frequencies (termed as high group frequencies) are 1209 Hz, 1336 Hz, 1477 Hz and 1633 Hz. Frequency tolerance of the oscillators is + .5%. As displayed in Figure, digits 2 through 9 can also be used to represent 24 of the 26 letters (Q and Z are omitted). Letters were originally used to identify one local telephone exchange from another.
Q. Can you explain Octal to Binary Conversion? It is also simple to convert from an integer octal number to binary. This is completed by: Convert the decimal number
how to design a single phase distribution circuit from a supply point to a load(lights)
Determine the load - Thevenins Equivalent Circuit: Determine the load for which the source shall transfer the maximum power if load is connected across the terminal A and B, u
Q. For a part of the network shown in Figure, given that i 1 = 4A; i 3 (t) = 5e -t , and i 4 (t) = 10 cos 2t, find v 1 , v 2 , v 3 , v 4 , i 2 , and i 5 .
A feedback control system with the configuration of Figure has the following parameters: K p = 0.5 V/rad, K a = 100 V/V, K m = 2.7 × 10 -4 N·m/V, J = 1.5 × 10 -5 kg·m 2 , and
Q. Figure can also be considered as a simple model of a magnetically operated relay that is commonly used for the automatic control and protection of electric equipment. Consider t
a) Illustrate the Schematic diagram of the Transformer Box used in the Practical Session b) Calculate the output voltage on an Oscilloscope and determine its amplitude and freq
Issue In Sub-Transmission and Distribution Systems The major issue in Sub-transmission and Distribution systems or rather the issue confronting the power sector as an overall,
A synchronous generator has a rotor with six poles and operates at 60 Hz. (a) Determine the speed of prime mover of the generator. (b) Repeat part (a) if the generator has 12
Draw a logic diagram to implement F=ABCDE using only 3 input AND gates
