E-r diagram, Database Management System

Assignment Help:

Let us now make the E-R diagram for the student database as per the explanation given in the previous section.

We can also states the overall logical structure of a database using ER model graphically with the help of an E-R diagram.

ER diagrams are composed of:

  • Rectangles showing entity sets.
  • Ellipses showing attribute.
  • Diamonds showing relationship sets.

823_E-R DIAGRAM.png

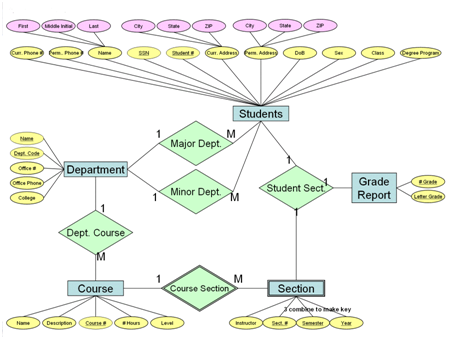

Figure: ER diagram of COLLEGE database
