Draw the b-h curve for a ferro-magnetic material, Chemical Engineering

Assignment Help:

Draw the B-H curve for a ferro-magnetic material  and identify the retentivity and the coercive field on the curve.

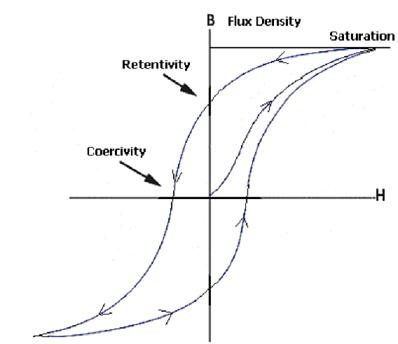

B-H curve for a ferromagnetic material is drawn above. Retentivity and Coercivity field are recognized on the curve. Energy loss per cycle equivalent the area of the hysteresis loop and is dissipated as heat.
