Draw shear and moment diagrams, Mechanical Engineering

Assignment Help:

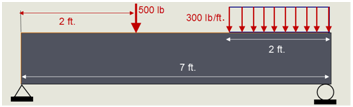

Determine the analytical solution for the maximum stress of the beam shown; compare with stress results from SolidWorks. Draw shear and moment diagrams and print them from the beam diagram menu in the SolidWorks Simulation study. The beam should be assigned an Alloy Steel material.

2401_beam diagram.png

224_Alloy Steet.png
