Draw dfd for the given requirement, Software Engineering

Assignment Help:

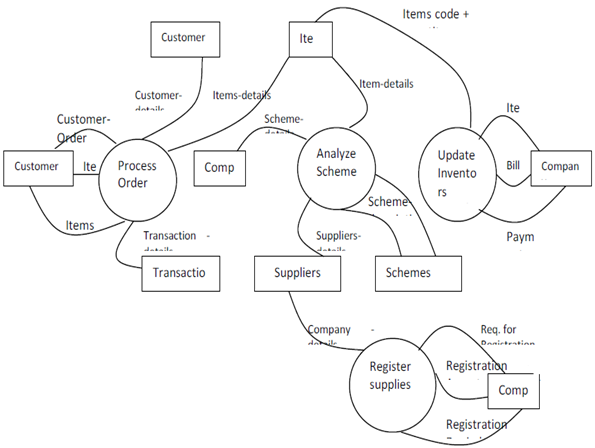

A store is in the business of selling paints as well as hardware items. A numeral of reputed companies supplies items to the store. New suppliers are able to also register with the store after providing necessary details. The customer is able to place the order with the shop telephonically. Or personally In case items aren't available customers are informed. The detail of each new customer is stored in the company's database for future reference. Usual customers are offered discounts. Additionally details of daily transactions are also maintained. The suppliers from time to time as well come up with attractive schemes for the dealers. In case system is attractive for a particular item the store places order with the company. Details of past schemes are as well maintained by the store. The details of every item that is item code and quantity available and so on is also maintained. Depict a level 1 DFD for the above requirement.

680_Draw DFD for the given requirement.png


Related Discussions:- Draw dfd for the given requirement

Determine the boundary value analysis, What is a boundary value analysis? ...

What is a boundary value analysis? A boundary value analysis is a testing procedure by which the elements at the edge of the domain are selected and tested. It is a test case d

What are task regions in the spiral model, What are task regions in the Spi...

What are task regions in the Spiral model. Customer communication - In this region it is recommended to establish customer communication. Planning - All planning doings are

Determine the level 4 of key process areas, Determine the Level 4 of key pr...

Determine the Level 4 of key process areas Level 4 KPAs: 1)      Quantitative Process Management (QP): It states quantitative standards for software process. 2)

What is software metric, What is software metric? A Software metric is...

What is software metric? A Software metric is a easy quantitative measure derivable from any attribute of the software life cycle (E.g.) LOC (Line Of Code) Function poin

Why is srs also known as blackbox specification of system, Q. Why is SRS al...

Q. Why is SRS also known as the blackbox specification of system ? Ans: SRS document is a contract among the development team and the customer once the SRS document is approv

List the principles of a software design, List the principles of a software...

List the principles of a software design. i. The design process should not undergo from "tunnel vision". ii. The design should be traceable to the analysis model. iii. Th

Database management systems, Database Management Systems: These are es...

Database Management Systems: These are essentially programming frameworks, and can offer good storage and retrieval systems. They are mainly intended for programmers to intera

Define the stress testing, Define the Stress testing: - It checks the r...

Define the Stress testing: - It checks the robustness of application. - It verifies that application consistently gives satisfactory performance under unfavorable and extrem

What is control structure testing, Explain Control Structure Testing Ans...

Explain Control Structure Testing Ans) Due to basis path testing alone is insufficient, other methods should be utilized. Condition testing can be utilized to design test cas

Software project planning necessitate what activities, Q. Software project ...

Q. Software project planning necessitate what activities? What are the difficulties encountered in measuring the Software Costs? Ans. Software project planning necessitate th
