Draw an e-r diagram and convert it to a relational schema, Database Management System

Assignment Help:

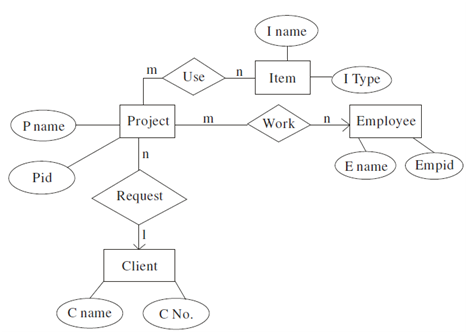

In an organisation various projects are undertaken. Each projects can employ one or more employees. Every employee can work on one or more projects. Each project is undertaken on the request of client. A client can request for various projects. Each project has only one client. A project could use a number of items and a item may be used through various projects. Draw an E-R diagram and convert it to a relational schema.

727_ER diagram.png


The relational schema has subsequent tables
1) Project (Pid, Pname)
2) Employee (Empid, Ename)
3) Client (Cno, Cname)
4) Item (I type, I name)
5) Use (Pid, I type)
6) Work (Pid, Empid)
7) Request (Pid, Cno)
