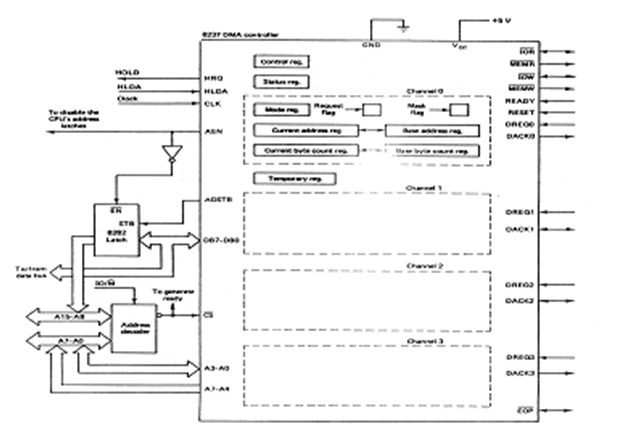

DMA Hardware (8237 DMAC) :
1)Processor contain HOLD/HOLD Acknowledge lines to interact with 8237
o DMAC can achieve control of ISA bus by asserting HOLD
o Processor acknowledges with HLDA
2)DRQ4 services slave controller Priorities are set as fixed
o DRQ0 highest and DRQ7 lowest
o It set at POST
o It can be reprogrammed for rotating priority
3)ISA address/data/control lines are also linked (not shown)
o It can access control registers through ports
o Each channel has a page register associated with
Port Mapped I/O or I/O Mapped I/O I/O devices are mapped into a separate address space. This is generally accomplished by having a different set of signal lines to denote a mem
Assembly Language: Inside the 8085, instructions are really stored like binary numbers, not a very good manner to look at them and very difficult to decipher. An assembler is
Task One Produce a menu such as the one below (remember to keep to this specification). M E N U 1, Enter Number 1 2, Enter Number 2 3, Display num1 and num2 4, D
INC: Increment : - This instruction increments the contents of the particular memory or register location by the value 1. All the condition code flags are affected except the carry
CMP: Compare: - This instruction compares the source operand, which can be a register or memory location an immediate data with a destination operand that might be a register or a
8254 Programmable Timer A diagram of Intel's 8254 interval event/timer counter is given in Figure. The 8254 consists of 3 identical counting circuits, per of which has GATE and
Could I get an estimate on how much it would cost to write a program in assembly language?
Write an 8086 program to find out the number of positive numbers and negative numbers from a given series of signed numbers include flow chart ..
RET : Return from the Procedure:- At each CALL instruction, the register IP and register CS of the next instruction is pushed to stack, before the control is transferred to the
init_lcd ;(this initialises a 2 row lcd) bcf TRISA,0 ;PORTA bit 0 as an output (lcd RS pin) bcf TRISA,1 ;PORTA bit 1
