Distinguish between e-mode and depletion mode mosfet, Computer Engineering

Assignment Help:

Distinguish between enhancement mode and depletion mode metal oxide semiconductor field effect transistors giving their characteristics.

Ans.

Enhancement mode and depletion mode metal oxide semiconductor field effect transistors

E Mode MOSFET

Depletion Mode MOSFET

a. No channel exists in between rain and

source at VGS = 0

a. Channel exists at VGS = 0 [in fabrication n type impurity is diffused

in between two n+ regions

b. Threshold voltage is positive for

nMOS Device.

b. Threshold voltage is negative for

nMOS Device.

c. No current flows for negative VGS

[nMOS]

c. Current flows even for negative VGS

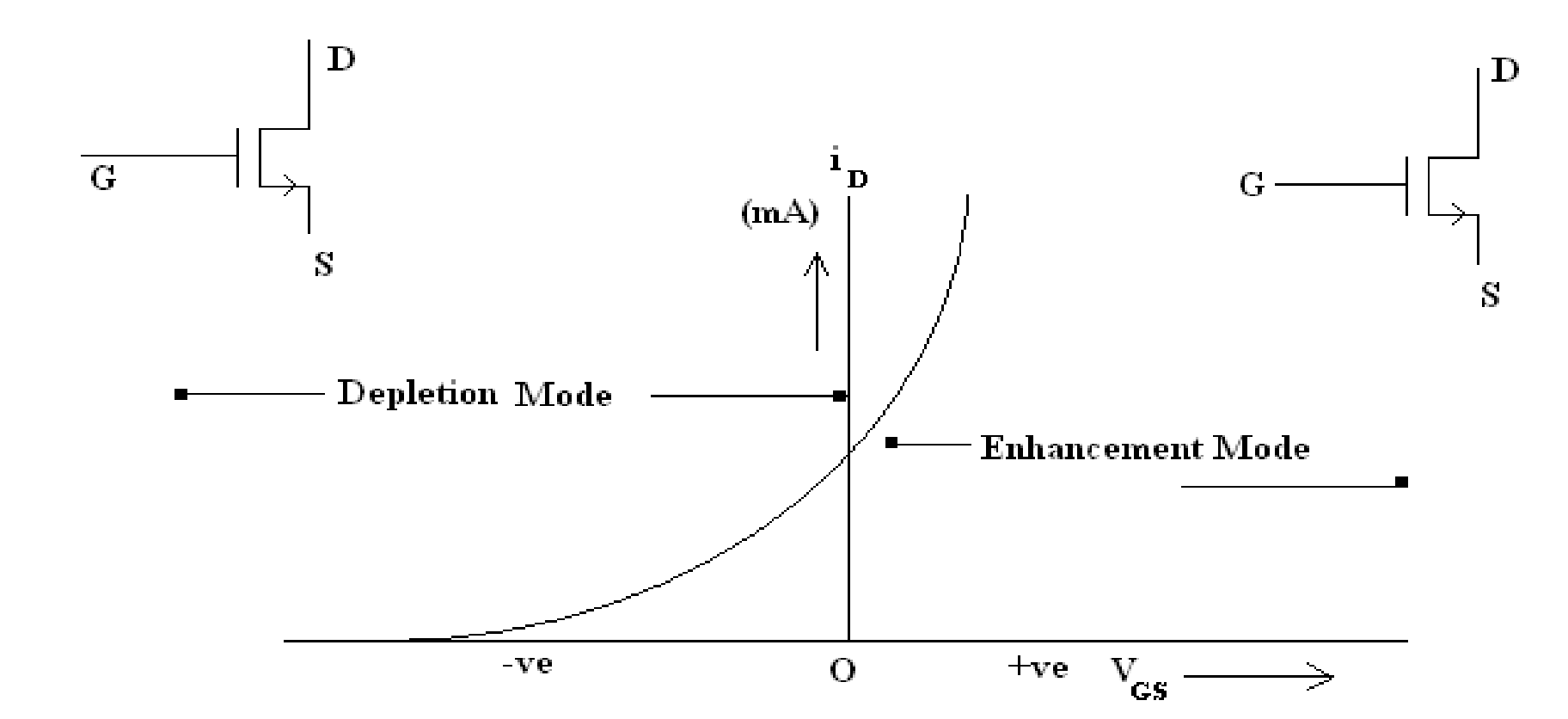

716_Enhancement mode and depletion mode metal oxide semiconductor field effect transistors.png

Diagram of Enhancement mode and depletion mode metal oxide semiconductor field effect transistors
