Diamond Crossing:

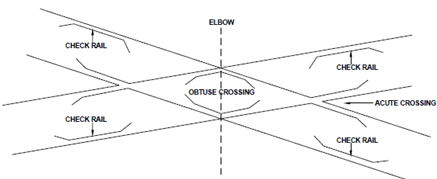

Two tracks crossing one another is known as a diamond crossing. The component of a Diamond Crossing are indicated in Figure.

676_Diamond Crossing.png

Figure: Diamond Crossing
