Determine the vertical reaction and the reaction moment, Physics

Assignment Help:

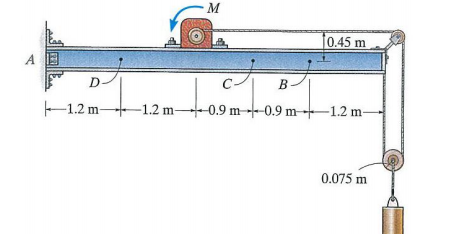

A load of P57 kN is being hoisted at a constant speed by the motor, M which has a weight of 0.5kN. The beam has a weight of P58 N/m. Assume that the hoisting has stopped at the position shown. Determine the Shear Force in kN rounded to 1 DP and the Bending Moment in kN.m rounded to 1 DP at point C in the beam. Then determine the vertical reaction and the reaction moment rounded to 1 DP at A using the standard sign conventions.

The Shear Force in kN at C rounded to 1DP is

 ANS

The Bending Moment in kN.m at C rounded to 1DP is

 ANS

The vertical reaction in kN at A rounded to 1DP is

 ANS

The Moment Reaction kN.m at A rounded to 1DP is

ANS

444_Determine the Vertical Reaction and the Reaction Moment.png
