Determine the values of the output of the logic gates, Computer Engineering

Assignment Help:

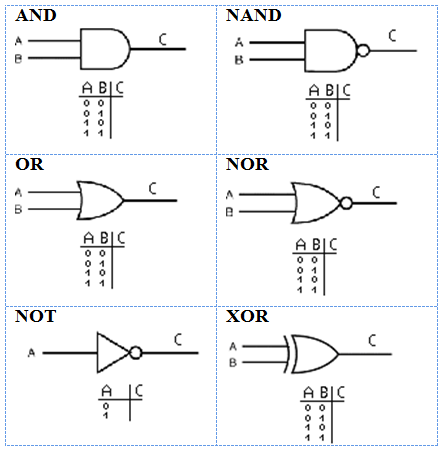

Write the values of the C output for the following gates:

1271_Determine the Values of the Output of the Logic Gates.png

For a(n) ________ gate, the output is zero if any of the inputs are equal to  one.

For a(n) ________ gate ,the output is one if and only if one of the two inputs is one

For a(n) ________ gate ,the output is one if and only if booth inputs are equal to one

For a(n) ________ gate ,the output is zero if and only if booth inputs are equal to one

For a(n) ________ gate ,the output is zero if and only if booth inputs are equal to zero
